FUJITSU K9900543020 aka 9900543020 THERMISTOR VALVE PIPE

(0)

This part fits the following Fujitsu outdoor condenser unit models: AOU18RLXFZ AOU18RLXFZH AOU24RLXFZ AOU24RLXFZH AOU24RML AOU24RML1 AOU36RLXFZ AOU36RLXFZ1 AOU36RML AOU36RML1

$129.00

Special Order. No Return. Usually ships in 2 - 4 business days. Authorized Fujitsu Installation Dealer.

Brand: DAIKIN

DAIKIN 6022924 COIL MOTORIZED VALVE

(0)

$129.00

Special Order. No Return. Usually ships in 4 - 8 business days. Authorized Daikin Installation Dealer.

Brand: DAIKIN

DAIKIN 6025134 Valve Assembly, 4-Way

(0)

$81.32

Special Order. No Return. Usually ships in 4 - 8 business days. Authorized Daikin Installation Dealer.

Brand: DAIKIN

DAIKIN 2149367 COIL MOTORIZED VALVE

(0)

$108.00

Special Order. No Return. Usually ships in 4 - 8 business days. Authorized Daikin Installation Dealer.

36 in. x 16 in. Diversitech UltraLite® Lightweight Concrete Equipment Pad UC1636-2 (2 in. thick)

(0)

A concrete shelled pad with the weight of plastic, strengthened by a fiber-cement coating, flexes instead of cracking or breaking. The textured surface prevents unit slide and allows water drainage, while the engineered core prevents warping and provides a solid bottom to resist settling. Unaffected by soil conditions, UV, temperature extremes, and other...

$43.00

In stock

On sale!

Daikin 9,000 btu 24.5 SEER Heat Pump & Air Conditioner Ductless Mini Split FTXS09LVJU / RXS09LVJU

Brand: DAIKIN

Daikin 9,000 btu 24.5 SEER Heat Pump & Air Conditioner Ductless Mini Split FTXS09LVJU / RXS09LVJU

(0)

FEATURES Intelligent eye occupancy sensor Weekly timer for programmable comfort Low ambient heat operation down to 0° F 12 year limited parts and compressor warranty with online registration

$1,949.00

Special Order. Non-Returnable. Usually Ships in 4 - 7 business days. Authorized Daikin Installation Dealer.

All best sellers

Banner

Out-of-Stock

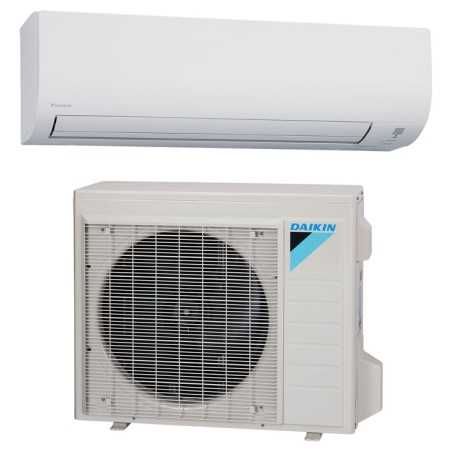

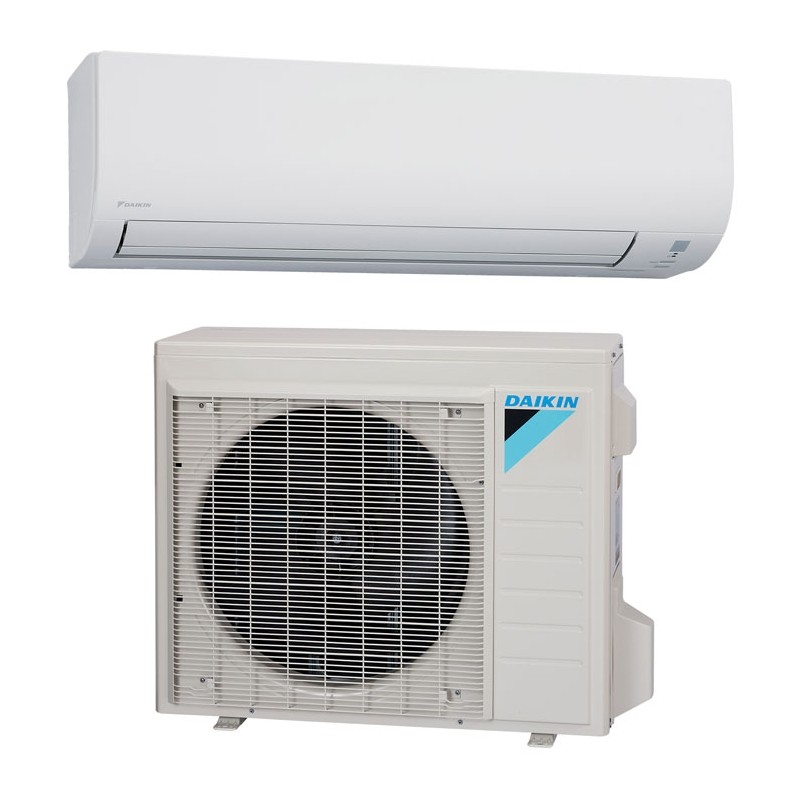

Daikin 24,000 btu 15 SEER Heat Pump & Air Conditioner Ductless Mini Split FTXN24NMVJU / RXN24NMVJU

Brand DAIKIN

FEATURES

15 SEER / Up to 12.2 EER / 8.2 HSPF
Mold-resistant washable air filter
Inverter driven swing compressor
Specialized drain pan design for improved cold climate drainage
Vertical auto-swing air flow
Hot-start function to eliminate start-up drafts
Powerful (turbo) and Econo mode settings
Wireless remote included

$1,690.00

Quantity

Out-of-Stock

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

SYSTEM PERFORMANCE

Indoor Unit Model No. FTXN24NMVJU Indoor Unit Name: 15 SEER HP DUCTLESS ID 2 TON

Outdoor Unit Model No. RXN24NMVJU Outdoor Unit Name: 15 SEER HP DUCTLESS OD 2 TON

Rated Cooling Capacity (Btu/hr): 22,000

Rated Cooling Conditions:

Indoor (°F DB/WB): 80 / 67

Ambient (°F DB/WB): 95 / 75

Sensible Capacity (Btu/hr): 16,120

Rated Piping Length(ft): 25

Max/Min Cooling Capacity (Btu/hr): 23,000 / 5,100

Rated Height Difference (ft): 65.60

Cooling Input Power (kW): 2.400

Rated Heating Conditions:

Indoor (°F DB/WB): 70 / 70

Ambient (°F DB/WB): 47 / 43

SEER: 15.00 / HSPF: 8.2

EER: 9.20 / Heating COP: 3.6

Rated Heating Capacity (Btu/hr): 22,000

Max/Min Heating Capacity (Btu/hr): 25,400 / 5,100

Heating Input Power (kW): 1.79

Ambient (°F DB/WB): 95 / 75

Product Details

Data sheet

COOLING CAPACITY: 24,000 btu/hr
SEER Rating: 15
EER Rating: 9.20
HEATING CAPACITY: 22,000 btu/hr
HSPF Rating: 8.2
Indoor Unit Depth - inches: 10 3/8 in.
Indoor Unit Weight - lbs.: 27 lbs.
Motion Sensor: No
Warranty Compressor/Parts: 10/10 Years

Attachments

Download

FTXN24NMVJU/RXN24NMVJU DATA

System Performance, Features & Details

Download (904.81KB)

GPSR

Brand: DAIKIN

Comments (0)

Grade

No customer reviews for the moment.
